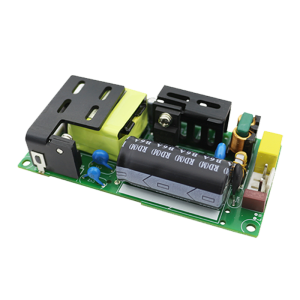

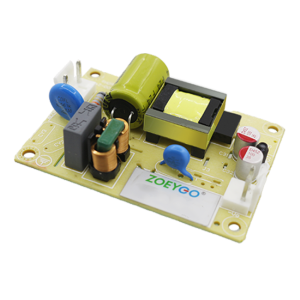

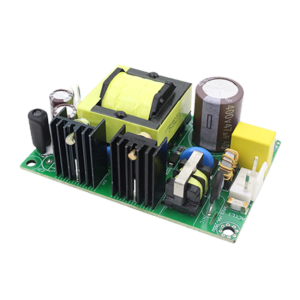

SF系列是拉斯维加斯官网光为客户提供一款尺度型裸板式开关电源，拥有靠得住性高、幼体积、性价比高档特点，宽泛利用于工控和电力仪器、仪表、智能家居等有关行业。
发展查看更多
祼板型电源
产品中心
尺度型SF系列
点击发展前提搜索框
| 系列标题 | 功率 (W) | 输入电压 (VAC) | 输入电压 (VDC) | 输出电压 (VDC) | 输出电流 | 效能% | 隔离电压 (VAC) | 封装尺寸 (mm) | 资料下载 (3D/PCB封装库/道理图库) | 认证/尺度 | 技术手册 | 样品申请 |

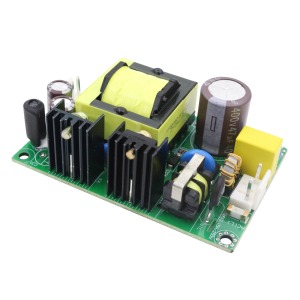

SF15-SXXVR SF15-SXXVR | 15 | 85-264 | 100-370 | 3.3/5/12/15/24 | 0.625-3 | 83-88 | 3000 | 63.5*45.7*18.0 | -- -- | -- |  -- |  -- |
| SF15-S03VR | 9.9 | 85-264 | 100-370 | 3.3 | 3 | 83 | 3000 | 63.5*45.7*18.0 | -- | | | |
| SF15-S05VR | 15 | 85-264 | 100-370 | 5 | 3 | 85 | 3000 | 63.5*45.7*18.0 | -- | | | |
| SF15-S12VR | 15 | 85-264 | 100-370 | 12 | 1.25 | 87 | 3000 | 63.5*45.7*18.0 | -- | | | |
| SF15-S15VR | 15 | 85-264 | 100-370 | 15 | 1 | 87 | 3000 | 63.5*45.7*18.0 | -- | | | |
| SF15-S24VR | 15 | 85-264 | 100-370 | 24 | 0.625 | 88 | 3000 | 63.5*45.7*18.0 | -- | | | |

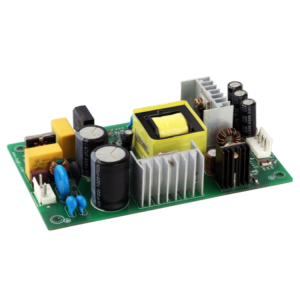

SF25-SXXVR SF25-SXXVR | 25 | 85-264 | 100-370 | 5/12/15/24/48 | 0.52-5 | 85-89 | 3000 | 76.2*50.8*30.0 | -- -- | -- | -- | -- |
| SF25-S05VR | 25 | 85-264 | 100-370 | 5 | 5 | 85 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF25-S12VR | 25 | 85-264 | 100-370 | 12 | 2.08 | 89 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF25-S15VR | 25 | 85-264 | 100-370 | 15 | 1.66 | 89 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF25-S24VR | 25 | 85-264 | 100-370 | 24 | 1.04 | 89 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF25-S48VR | 25 | 85-264 | 100-370 | 48 | 0.52 | 89 | 3000 | 76.2*50.8*30.0 | -- | | | |

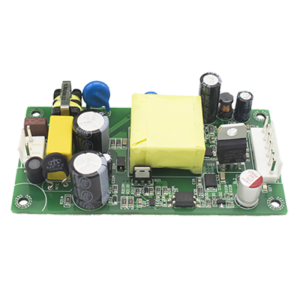

SF30-TX SF30-TX | 30 | 85-264 | 100-370 | 5/±12 | 0.15-3 | 84 | 3000 | 95.0*50.0*25.0 | -- -- | -- | -- | -- |
| SF30-TA | 30 | 85-264 | 100-370 | 5&±12 | 3&1.2&0.15 | 84 | 3000 | 95.0*50.0*25.0 | -- | | | |

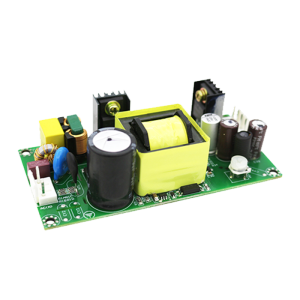

SF35-SXXVR SF35-SXXVR | 35 | 85-264 | 100-370 | 5/12/15/24/48 | 0.73-7 | 85-90 | 3000 | 76.2*50.8*30.0 | -- -- | -- | -- | -- |
| SF35-S05VR | 35 | 85-264 | 100-370 | 5 | 7 | 85 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF35-S12VR | 35 | 85-264 | 100-370 | 12 | 2.91 | 87 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF35-S15VR | 35 | 85-264 | 100-370 | 15 | 2.33 | 87 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF35-S24VR | 35 | 85-264 | 100-370 | 24 | 1.45 | 88 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF35-S48VR | 35 | 85-264 | 100-370 | 48 | 0.73 | 90 | 3000 | 76.2*50.8*30.0 | -- | | | |

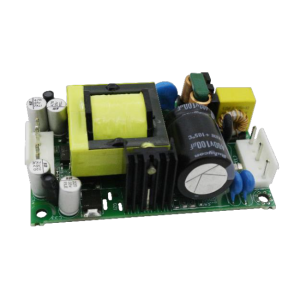

SF45-SXXVR SF45-SXXVR | 45 | 85-264 | 100-370 | 5/12/15/24/48 | 0.93-9 | 85-91 | 3000 | 76.2*50.8*30.0 | -- -- | -- | -- | -- |
| SF45-S05VR | 45 | 85-264 | 100-370 | 5 | 9 | 85 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF45-S12VR | 45 | 85-264 | 100-370 | 12 | 3.75 | 89 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF45-S15VR | 45 | 85-264 | 100-370 | 15 | 3 | 90 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF45-S24VR | 45 | 85-264 | 100-370 | 24 | 1.87 | 91 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF45-S48VR | 45 | 85-264 | 100-370 | 48 | 0.93 | 91 | 3000 | 76.2*50.8*30.0 | -- | | | |

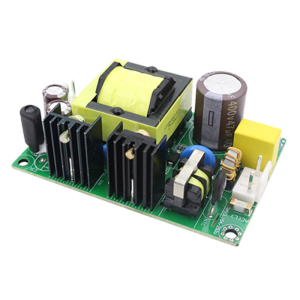

SF50-TX SF50-TX | 50 | 85-305 | 100-430 | 5/±12/±15 | 0.5-3 | 78-79 | 3000 | 127.0*77.0*30.0 | -- -- | -- | -- | -- |
| SF50-TA | 50 | 85-305 | 100-430 | 5&±12 | 3&2&0.5 | 78 | 3000 | 127.0*77.0*30.0 | -- | | | |
| SF50-TB | 50 | 85-305 | 100-430 | 5&±15 | 3&2&0.5 | 79 | 3000 | 127.0*77.0*30.0 | -- | | | |

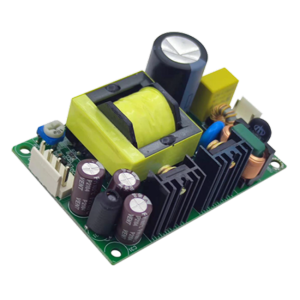

SF60-DXXYY SF60-DXXYY | 60 | 85-264 | 100-370 | 5/12/17/24/±12 | 1.5-3 | 81-86 | 3000 | 76.2*50.8*28.0 | -- -- | -- | -- | -- |
| SF60-D0512 | 60 | 85-264 | 100-370 | 5&12 | 3&2 | 84 | 3000 | 76.2*50.8*28.0 | -- | | | |
| SF60-D1224 | 60 | 85-264 | 100-370 | 12&24 | 2&1.5 | 81 | 3000 | 76.2*50.8*28.0 | -- | | | |
| SF60-D1724 | 60 | 85-264 | 100-370 | 17&24 | 1.5&1.5 | 86 | 3000 | 76.2*50.8*28.0 | -- | | | |
| SF60-D12 | 60 | 85-264 | 100-370 | ±12 | 2.5&2.5 | 84 | 3000 | 76.2*50.8*28.0 | -- | | | |

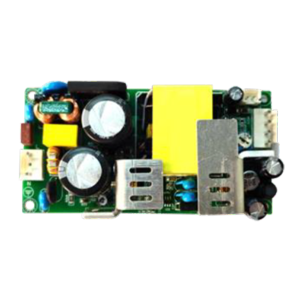

SF65-SXXBVR SF65-SXXBVR | 65 | 90-264 | 100-370 | 5/12/15/24/48 | 1.35-8 | 86-91 | 3000 | 101.6*50.8*32.0 | -- -- | -- | -- | -- |
| SF65-S05BVR | 40 | 90-264 | 100-370 | 5 | 8 | 86 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SF65-S12BVR | 65 | 90-264 | 100-370 | 12 | 5.42 | 90 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SF65-S15BVR | 65 | 90-264 | 100-370 | 15 | 4.34 | 90 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SF65-S24BVR | 65 | 90-264 | 100-370 | 24 | 2.71 | 88 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SF65-S48BVR | 65 | 90-264 | 100-370 | 48 | 1.35 | 91 | 3000 | 101.6*50.8*32.0 | -- | | | |
SF65-SXXVR SF65-SXXVR | 65 | 90-264 | 100-370 | 12/15/24/48 | 1.35-5.42 | 88-91 | 3000 | 76.2*50.8*30.0 | -- -- | -- | -- | -- |
| SF65-S12VR | 65 | 90-264 | 100-370 | 12 | 5.42 | 90 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF65-S15VR | 65 | 90-264 | 100-370 | 15 | 4.34 | 90 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF65-S24VR | 65 | 90-264 | 100-370 | 24 | 2.71 | 88 | 3000 | 76.2*50.8*30.0 | -- | | | |
| SF65-S48VR | 65 | 90-264 | 100-370 | 48 | 1.35 | 91 | 3000 | 76.2*50.8*30.0 | -- | | | |
SF100-SXXR3 SF100-SXXR3 | 100 | 90-305 | 100-430 | 5/12/15/24/48 | 2.08-18 | 74-90 | 3000 | 101.6*50.8*25.0 | -- -- | -- | -- | -- |
| SF100-S05R3 | 60&90 | 90-305 | 100-430 | 5 | 12&18 | 82&74 | 3000 | 101.6*50.8*25.0 | -- | | | |
| SF100-S12R3 | 100 | 90-305 | 100-430 | 12 | 8.3 | 88 | 3000 | 101.6*50.8*25.0 | -- | | | |
| SF100-S15R3 | 100 | 90-305 | 100-430 | 15 | 6.6 | 90 | 3000 | 101.6*50.8*25.0 | -- | | | |
| SF100-S24R3 | 100 | 90-305 | 100-430 | 24 | 4.16 | 90 | 3000 | 101.6*50.8*25.0 | -- | | | |
| SF100-S48R3 | 100 | 90-305 | 100-430 | 48 | 2.08 | 90 | 3000 | 101.6*50.8*25.0 | -- | | | |
SF150-SXXVR SF150-SXXVR | 150 | 90-264 | 100-370 | 12/15/24/27/36/48/54 | 2.77-11.67 | 87-91 | 3000 | 101.6*50.8*32.0 | -- -- | -- | -- | -- |
| SF150-S12VR | 140 | 90-264 | 100-370 | 12 | 11.67 | 87 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SF150-S15VR | 140 | 90-264 | 100-370 | 15 | 9.33 | 88 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SF150-S24VR | 150 | 90-264 | 100-370 | 24 | 6.25 | 89 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SF150-S27VR | 150 | 90-264 | 100-370 | 27 | 5.55 | 90 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SF150-S36VR | 150 | 90-264 | 100-370 | 36 | 4.16 | 90 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SF150-S48VR | 150 | 90-264 | 100-370 | 48 | 3.125 | 91 | 3000 | 101.6*50.8*32.0 | -- | | | |
| SF150-S54 | 150 | 90-264 | 100-370 | 54 | 2.77 | 91 | 3000 | 101.6*50.8*32.0 | -- | | |
